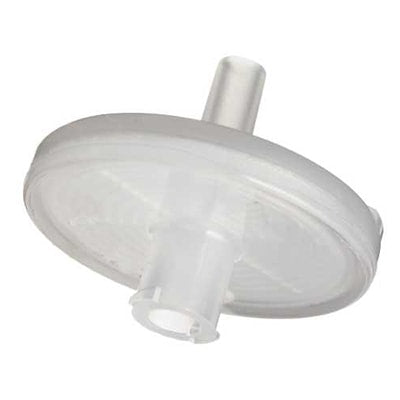

If your application is gas or liquid removal, we have a filter for you. Whether you need PARTICULATE , COALESCING or a PTFE MEMBRANE for protection of analysers, valves or regulators. Please see some options below, including fast loop or multi-function membranes with coalescing filtration all in one compact housing.
Principal Specifications
| Housing Model | GMS050 | GMS100 | GMS105 | GMS205 | GSC205 | GMS170 | GMS122 |
| Port Size - NPT | 1/8" | 1/4" | 1/8" or 1/4" | 1/4" or 1/2" | 1/4" or 1/2" | 1/4" | 1/4" |
| Maximum Pressure - Bar | 100 | 100 | 100 | 100 | 100 | 150 | 100 |
| Maximum Temperature - ºC | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| For more information please click link | GMS050 Data Sheet | GMS100 Data Sheet | GMS105 1/8" Data Sheet | GMS205 1/4" Data Sheet | GSC205 1/4" Data Sheet | GMS170 Data Sheet | GMS122 Data Sheet |
| GMS105 1/4" Data Sheet | GMS205 1/2" Data Sheet | GSC205 1/2" Data Sheet |
| Housing Model | 110 | 112 | 114 | 116 | 120 | 122 | 124 | 126 |
| Port Size - NPT | 1/8" | 1/4" | 1/8" | 1/4" | 1/8" | 1/4" | 1/8" | 1/4" |
| Drain Size - NPT | 1/8" | 1/4" | None | None | 1/4" | 1/4" | None | None |
| Max. Pressure - Bar (1) | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 |
| Max. Temperature - ºC (2) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Filter Element Codes (3) | ||||||||
| Disposable Element | 12-32-xx | 12-32-xx | 12-32-xx | 12-32-xx | 12-57-xx | 12-57-xx | 12-57-xx | 12-57-xx |
| Stainless Steel Element | SS-12-32-xx | SS-12-32-xx | SS-12-32-xx | SS-12-32-xx | SS-12-57-xx | SS-12-57-xx | SS-12-57-xx | SS-12-57-xx |
| PTFE Element | PT-12-32-xx | PT-12-32-xx | PT-12-32-xx | PT-12-32-xx | PT-12-57-xx | PT-12-57-xx | PT-12-57-xx | PT-12-57-xx |
| For more information please click link | 110 Data Sheet | 112 Data Sheet | 114 Data Sheet | 116 Data Sheet | 120 Data Sheet | 122 Data Sheet | 124 Data Sheet | 126 Data Sheet |
| Housing Model | 116IL-3 | 126IL-3 | 136IL-3 | 146IL-3 |
| Port Size - NPT | 1/4" | 1/4" | 1/2" | 1/2" |
| Drain Size - NPT | 1/4" | 1/4" | 1/4" | 1/4" |
| Max. Pressure - Bar (1) | 340 | 340 | 100 | 100 |
| Max. Temperature - ºC (2) | 200 | 200 | 200 | 200 |
| Filter Element Codes (3) | ||||
| Disposable Element | 12-32-xx | 12-57-xx | 25-64-xx | 25-178-xx |
| Stainless Steel Element | SS-12-32-xx | SS-12-57-xx | SS-25-64-xx | SS-25-178-xx |
| PTFE Element | PT-12-32-xx | PT-12-57-xx | PT-25-64-xx | PT-25-178-xx |
| For more information please click link | 116IL-3 Data Sheet | 126IL-3 Data Sheet | 136IL-3 Data Sheet | 146IL-3 Data Sheet |
Notes:
(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature
(2) Maximum temperature 200ºC using standard seals. For temperatures up to 450ºC use a high temperature gasket
(3) Replace ‘xx’ with grade required, e.g. 12-32-50, SS-12-57-25, PT-12-32-03
Please contact us with any questions, we're here to help.
